MODEL: SDBV-W, SDBV-W300 & SDBV-WTEC-175/200/250/300
Specifications
MODEL: SDBV-W
| Size | 2 ½” through 8” | |
|---|---|---|
| Working Pressure | 175 psi | |
| Max. Test Pressure | 350 psi | |
| Working Temperature | 250° F (120° C) | |

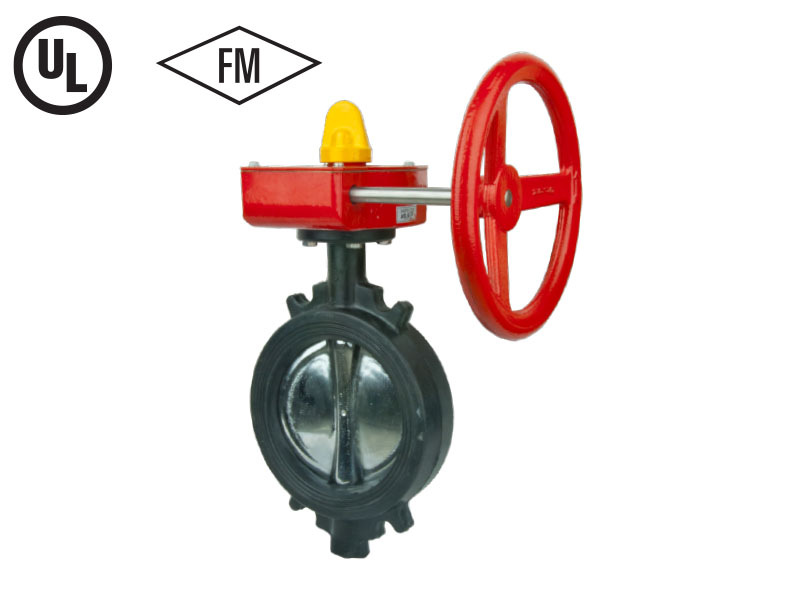

MODEL: SDBV-W300
| Size | 2 ½” through 8” | |
|---|---|---|
| Working Pressure | 300 psi (21.5 Bar) | |
| Max. Test Pressure | 600 psi (43 Bar) | |
| Working Temperature | 250° F (120° C) | |

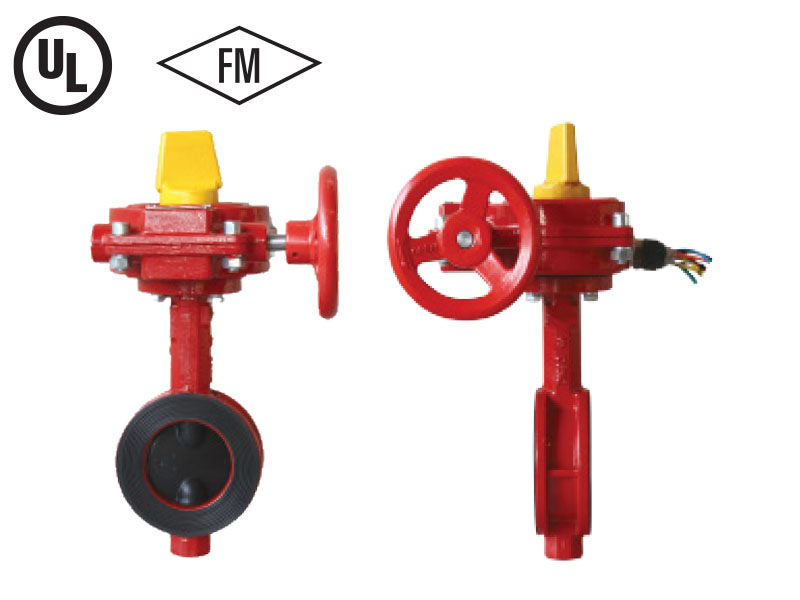

MODEL: SDBV-WTEC-175/200/250/300
| Design Standard | MSS SP-67 | |
|---|---|---|
| Connection Ends | ASME B16.1 CL 125, ASME B16.5 CL 150 |
|
| Top Flange Standard | ISO 5211 Stem drive by keys, parallel or diagonal square or flat head | |
| With integrated tamper switch | Yes | |
| Working Pressure | 175 PSI / 200 PSI / 250 PSI / 300 PSI | |
| Temperature Range | 0ºC – 80ºC | |
| Coating | Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 | |
