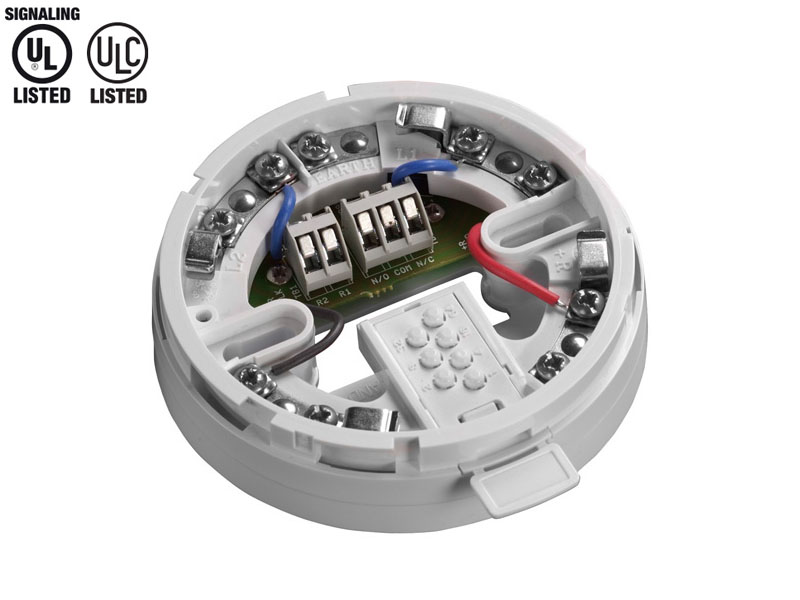

Low Power Relay Base

SHIELD Low Power Relay Base incorporates a low power relay to control field equipment such as automatic door closers.

Category: NEO Series

SHIELD Low Power Relay Base incorporates a low power relay to control field equipment such as automatic door closers.

Features

Gives a set of voltage free contacts controlled by the remote output of a detector
Draws negligible current

Type	20D Isolating Base
Working Voltage	17 – 28 V DC
Modulation Voltage (peak to peak)	5 – 9 V DC
Surge Current	0 mA
Supervisory Current	35 μA
Maximum Line Current	1 A
Operating Temperature	-20°C to 68°C 0°C to 38°C*
Base Material	Polycarbonate, White, V–0 to UL94
Dimensions (diameter x height)	100 mm x 15 mm

*(UL approved continuous operating range)
