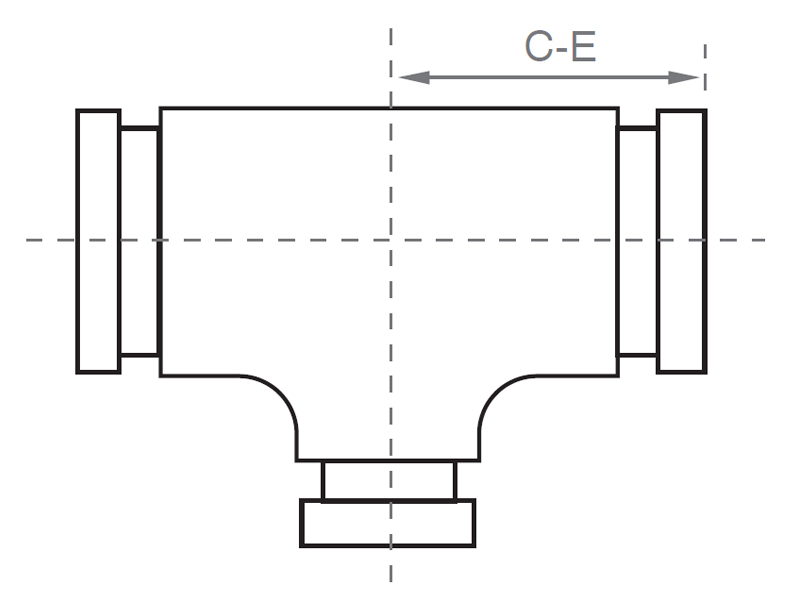

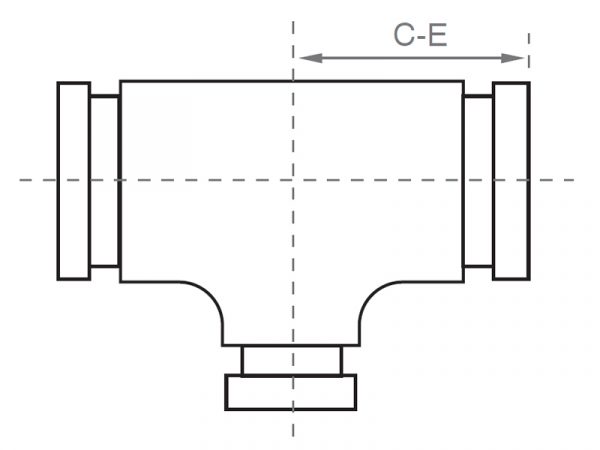

Reducing Tee

SDG-53

Nominal Size (Inch)	Pipe O.D (mm)	Maximum Working Pressure (PSI)	C-E (mm)
2 x 1	60.3 x 33.4	500	70.0
2 x 1½	60.3 x 48.3	500	70.0
3O.D x 2	76.1 x 60.3	500	76.0
3 x 1	88.9 x 33.4	500	108.0
3 x 2	88.9 x 60.3	500	85.5
3 x 3 O.D	88.9 x 76.1	500	85.5
4 x 1	114.3 x 33.4	500	101.0
4 x 2	114.3 x 60.3	500	101.0
4 x 3 O.D	114.3 x 76.1	500	101.0
4 x 3	114.3 x 88.9	500	101.0
5½ O.D x 2	139.7 x 60.3	500	124.0
5½ O.D x 3 O.D	139.7 x 76.1	500	124.0
5½ O.D x 3	139.7 x 88.9	500	124.0
5½ O.D x 4	139.7 x 114.3	500	124.0
5 x 2	141.3 x 60.3	500	124.0
6 ½ O.D x 2	165.1 x 60.3	300	140.0
6 ½O.D x 3 O.D	165.1 x 76.1	300	140.0
6 ½ O.D x 3	165.1 x 88.9	300	140.0
6 ½ O.D x 4	165.1 x 114.3	300	140.0
6½ O.D x 51/2 O.D	165.1 x 139.7	300	140.0
6 x 2	168.3 x 60.3	500	140.0
6 x 2½	168.3 x 73.0	500	140.0
6 x 4	168.3 x 114.3	500	140.0
6 x 5	168.3 x 141.3	300	140.0
8 x 2	219.1 x 60.3	500	175.0
8 x 3 O.D	219.1 x 76.1	300	175.0
8 x 3	219.1 x 88.9	500	175.0
8 x 4	219.1 x 114.3	500	175.0
8 x 5½ O.D	219.1 x 139.7	300	175.0
8 x 6½ O.D	219.1 x 165.1	300	175.0
8 x 6	219.1 x 168.3	500	175.0
10 x 6½ O.D	273.0 x 165.1	300	229.0
10 x 8	273.0 x 219.1	300	229.0
12 x 8	323.9 x 219.1	300	254.0
12 x 10	323.9 x 273.0	300	254.0
