Selectable Gallonage Automatic Nozzle
Model No.: SD-PFN40

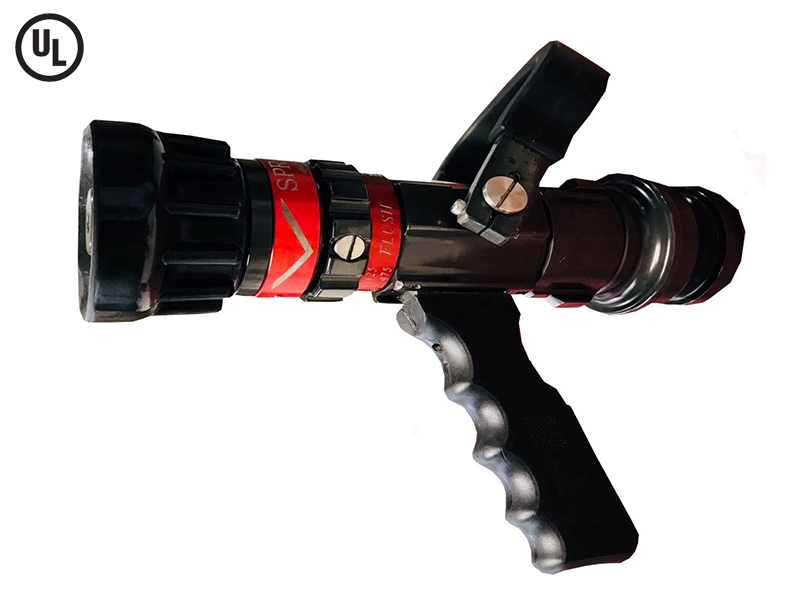

SHIELD PISTOL TYPE light weight selectable gallonage nozzle with straight stream 120° wide fog setting at 4 different flows. Made from high strength aluminum with hard anodized treatment, this nozzle is designed to suit the exacting demands of the fireman. A simple shut-off lever, online flush function, pistol grip handle, easily replaceable spinning teeth ring and protective rubber bumper make this product the perfect combination of rugged flexibility and sophisticated features.
SHIELD PISTOL TYPE light weight selectable gallonage nozzle with straight stream 120° wide fog setting at 4 different flows. Made from high strength aluminum with hard anodized treatment, this nozzle is designed to suit the exacting demands of the fireman. A simple shut-off lever, online flush function, pistol grip handle, easily replaceable spinning teeth ring and protective rubber bumper make this product the perfect combination of rugged flexibility and sophisticated features.
Features

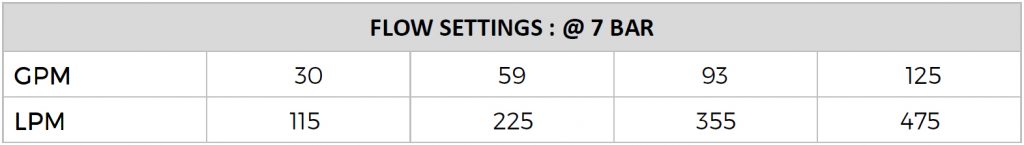

- Selectable Multi flow settings : As per below table
- Jet-spray mode by twist rotation of bumper
- Spray up to 120°
- Shut off ball valve nozzle operation
- Abrasion and corrosion resistant
- Flush without shutting off
- Anti-slip finger lock rubber moulded pistol grip
- Suitable for foam application with separate educator and foam tube
- Standard inlet : 1½” BSP NH(F) Swivel
- Optional inlet : 64mm 2½ BS (M) Inst / Storz / JIS etc.
- Weight
- 1.9kgs (approx.) with 1½” (F) NH Swivel
- 2.2kgs (approx.) with 2½” (M) BS:336
