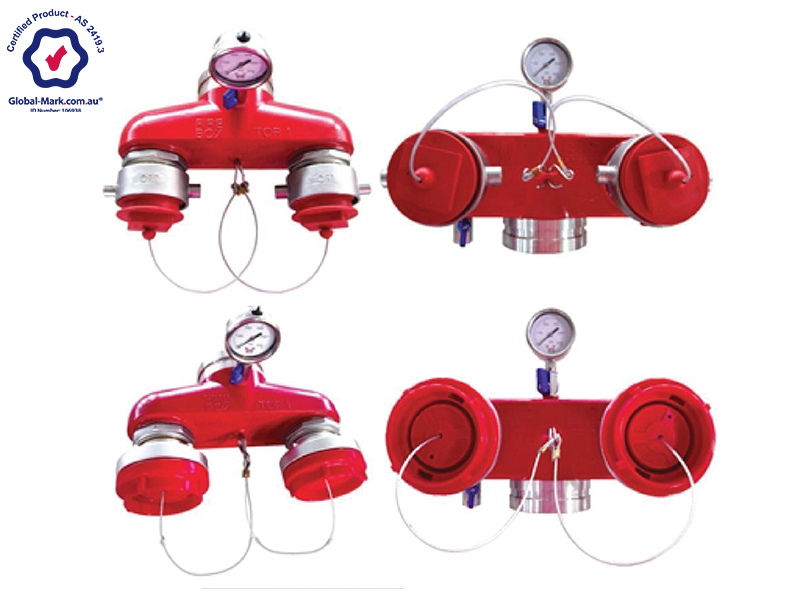

The Hydrant Boosters provide the access to fire brigades for supplying the sufficient water as quickly & efficiently as possible. The inlets are provided with any required fire brigade connections such as QRT/SRT/STZ with caps & the outlet is with 4” roll groove connection for the ease of connectivity. The booster valves shall complies to AS 2419.3.
Features
- High strength, Stainless steel body Double booster assembly.
- High corrosion resistance.
- Inlet connections are fitted with spring loaded non return valve
- Options are available with Round thread & Storz coupling inlet connections
- PVC cap with Stainless steel rope connected with body
- Outlet connections are available with grooved ends
- Red painted
- Standard compliance to AS 2419.3
- Accessories: pressure gauge, Ball valve & Drain valve
Specification

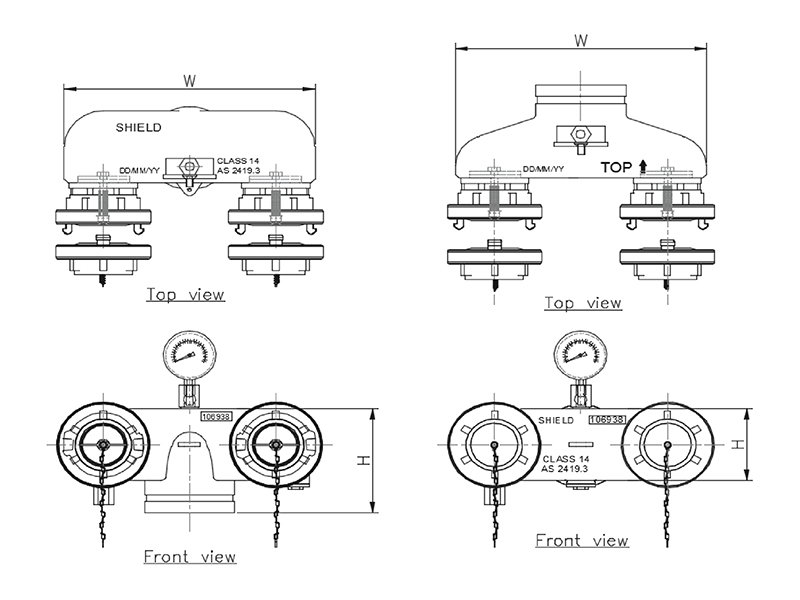

| Model | Body Type | Inlet | Outlet | Height | Width |
|---|---|---|---|---|---|
| SD-BVR65BS | Dual Booster – Rear Outlet | 2 ½” Male inst. to BS336 | 4″ Grooved | 115 | 325 |
| SD-BVR65BS | Dual Booster – Bottom Outlet | 2 ½” Male inst. to BS336 | 4″ Grooved | 140 | 325 |
| SD-BVR65QRT | Dual Booster – Rear Outlet | 2 ½” QRT | 4″ Grooved | 115 | 325 |
| SD-BVR65QRT | Dual Booster – Bottom Outlet | 2 ½” QRT | 4″ Grooved | 140 | 325 |
| SD-BVR65SRT | Dual Booster – Rear Outlet | 2 ½” SRT | 4″ Grooved | 115 | 325 |
| SD-BVR65SRT | Dual Booster – Bottom Outlet | 2 ½” SRT | 4″ Grooved | 140 | 325 |
| SD-BVR65STZ | Dual Booster – Rear Outlet | 2 ½” SRT | 4″ Grooved | 115 | 325 |
| SD-BVR65STZ | Dual Booster – Bottom Outlet | 2 ½” SRT | 4″ Grooved | 140 | 325 |
Tolerance ± 1 mm
- QRT — Queensland Round Thread
- SRT — South Australia Round Thread
- STZ — Storz Connection
