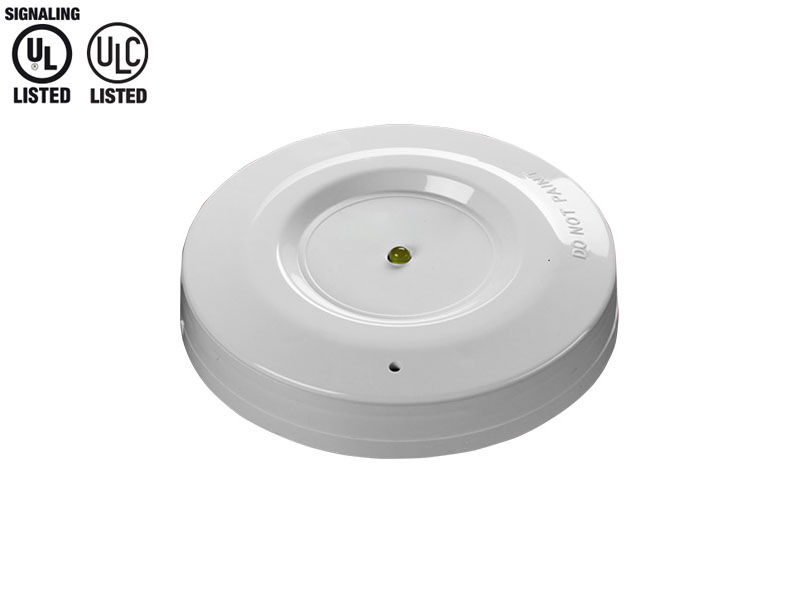

Isolator Module
The Isolator is placed at intervals on the loop and ensures that, in the case of a short circuit, only the section between the isolators will be affected. When the short circuit is removed, the isolators automatically restore power and data to the isolated section.
The Isolator is placed at intervals on the loop and ensures that, in the case of a short circuit, only the section between the isolators will be affected. When the short circuit is removed, the isolators automatically restore power and data to the isolated section.
Features
- Detects wiring short-circuits using patented technology
- Minimizes disruption from short-circuits
- Automatic de-isolation on short-circuit removal
- Up to 20 devices may be installed between isolators
Specification
| Device Type | Isolator | |
|---|---|---|
| Style | Mounting Base And Twist-In Isolator Module | |
| Working Voltage | 17 – 28 V DC | |
| Operating Current | Modulation Voltage | 5 – 9 V( peak to peak) |
| Supervisory Current | 110 μA | |
| Surge Current | 0m A | |
| Maximum Current Drawn | 8.5 mA | |
| Maximum Line Impedance | 50 Ω | |
| Temperature Range | 0°C to 38°C | |
| Dimensions (diameter x height) | 100 mm x 31.25 mm | |
| Weight | 82 g | |
